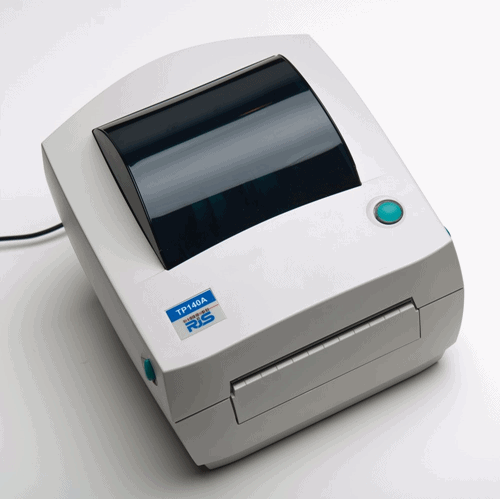

TP-140A Printer

TP140A Report Printer
The TP140A Report printer allows for printing of inspection reports from your Inspector series bar code verifier. The printer provides a simple report that will have a line for each bar code inspected. Note: The Verifier Computer Interface Report (VCIR) is required if you need the Scan Reflectance Profile (SRP).
Features
  • Compatible with D4000 (all models), I-4000, L-1000, and I-3000 bar code verifiers
  • Record keeping for proof of compliance
  • Printed on a 4 inch wide direct thermal report
  • Provides all bar code inspection details (varies by bar code verifier model)
  • FAQs
    Supplies & Accessories
    TP140A Printer with Cable 110 VAC part number 002-9018
    TP140A Printer with Cable 220 VAC part number 002-7181
    TP140/140A Printer Paper, 4 rolls of 250 feet part number 002-6117
    TP140/140A Printer Paper, 2 rolls of 574 feet part number 002-6119
    TP140/140A Verifier Cable part number 002-6773
    Rechargeable Batteries, 4 part number 002-0967
    Battery Charger 110 VAC   part number 002-1425
    Battery Charger 220 VAC part number 002-1617
    Database Download Kit part number 002-8009
    Additional Inspector 4000 Manual   part number 002-5564
    Reflectance Calibration Plaque   part number 002-7410
